Standing Seam Roofing Sheet Manufacturer
Recommended for buildings with distinctive architectural design and commercial or institutional construction, standing seam roofing combines superior technical performance with a refined appearance, supported by specialised technical consultancy from the BELPROFILE team, from the design stage through to installation.
The best-performing coating system for sheet metal products, applied in 10 layers and offering the longest lifespan.
Special paint applied in 7 layers, each with a role in protecting the sheet over time; its sand-grain texture gives superior hardness and resistance and ensures greater thermal comfort in summer.
Matt polyester paint that gives the colour greater stability over time.
Provides additional protection, being three times more resistant to corrosion than galvanised steel.
Super-polyester paint with greater colour stability over time and increased scratch resistance.
The best-performing coating system for sheet metal products, applied in 10 layers and offering the longest lifespan.
Glossy polyester paint, the traditional way of protecting metal products.
- Roof covering with no penetrations.

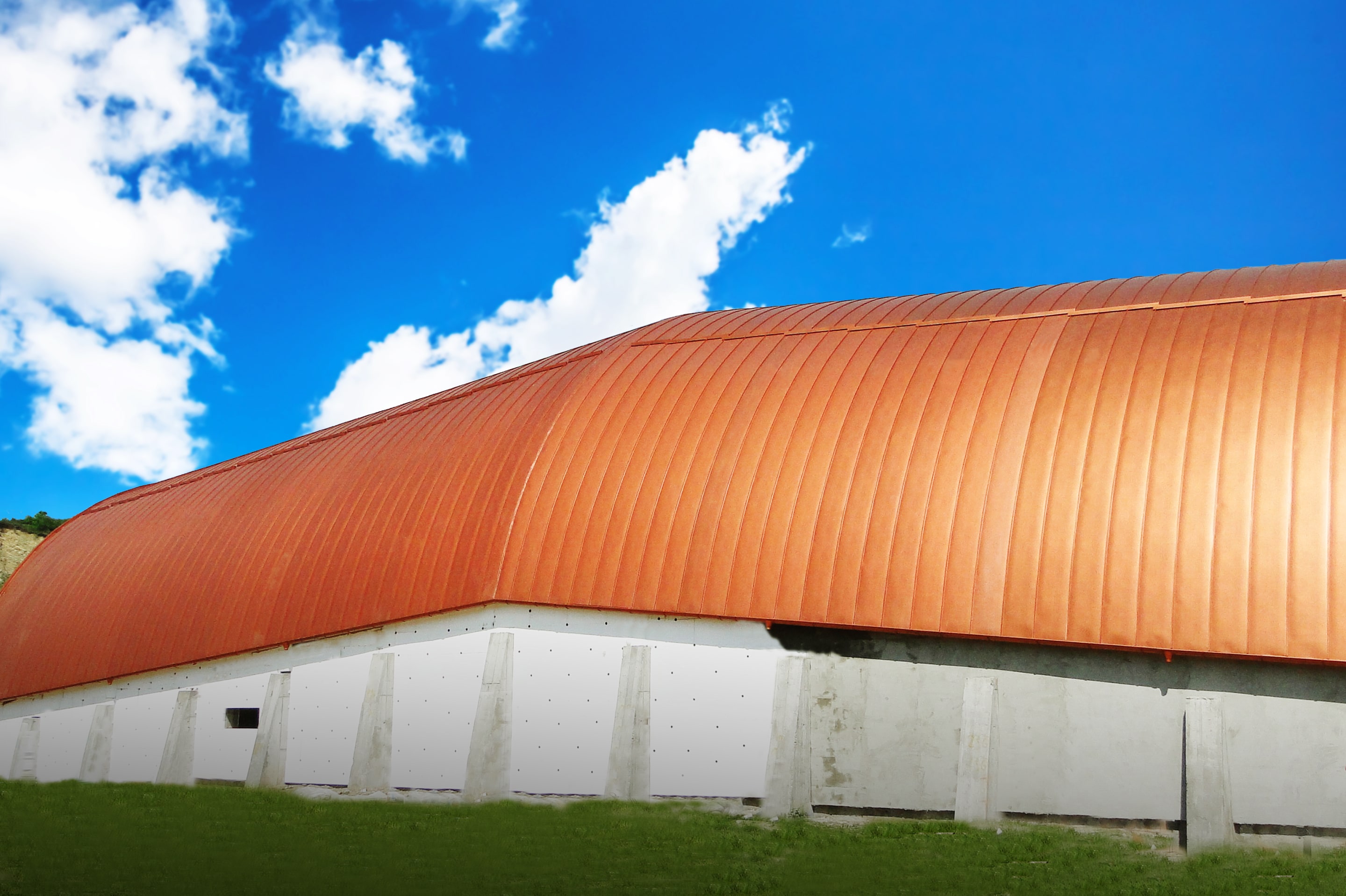

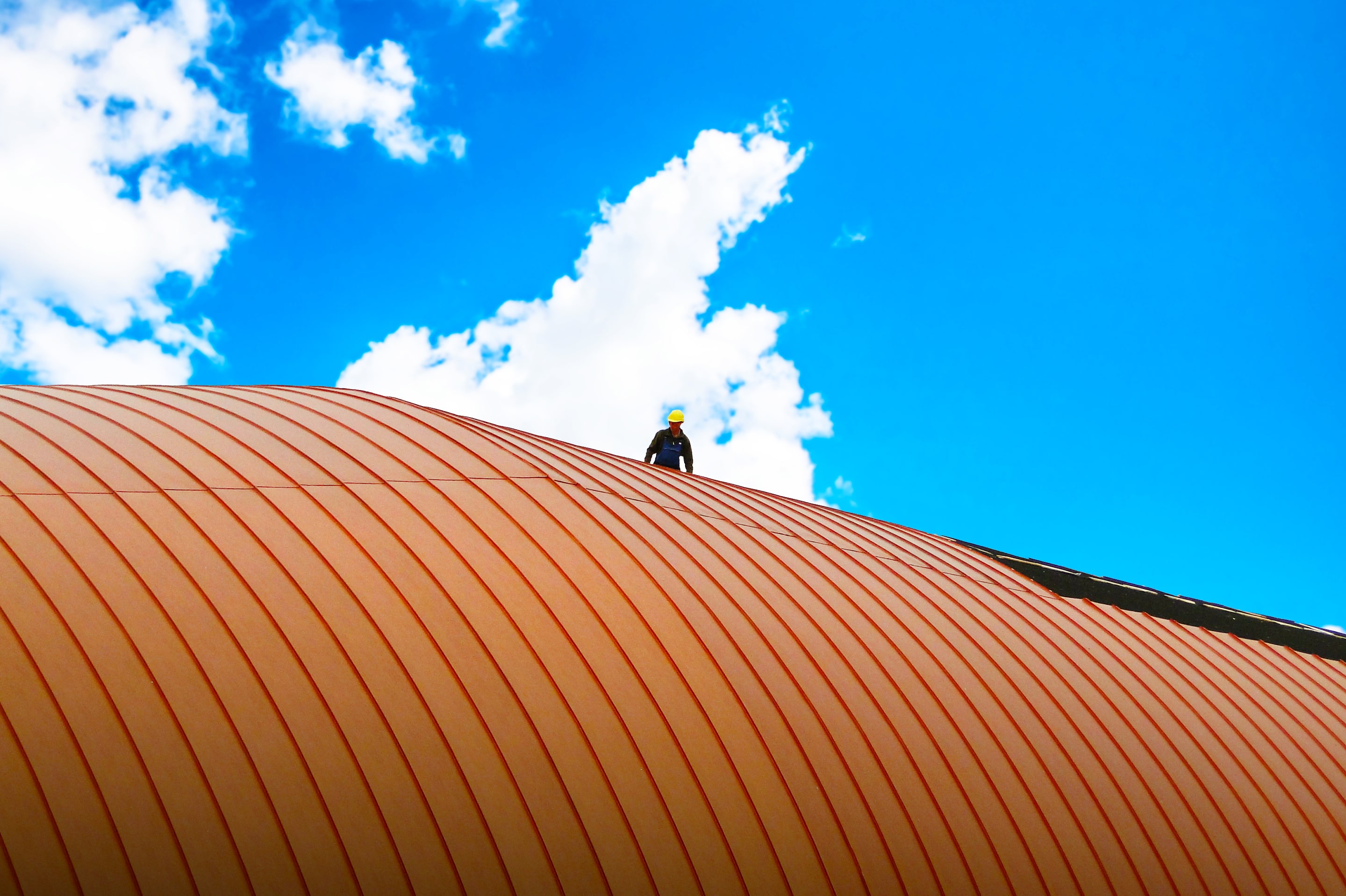

- Can cover surfaces of varied shapes (round, circular with changes of angle).
- Panels can be made in variable widths.

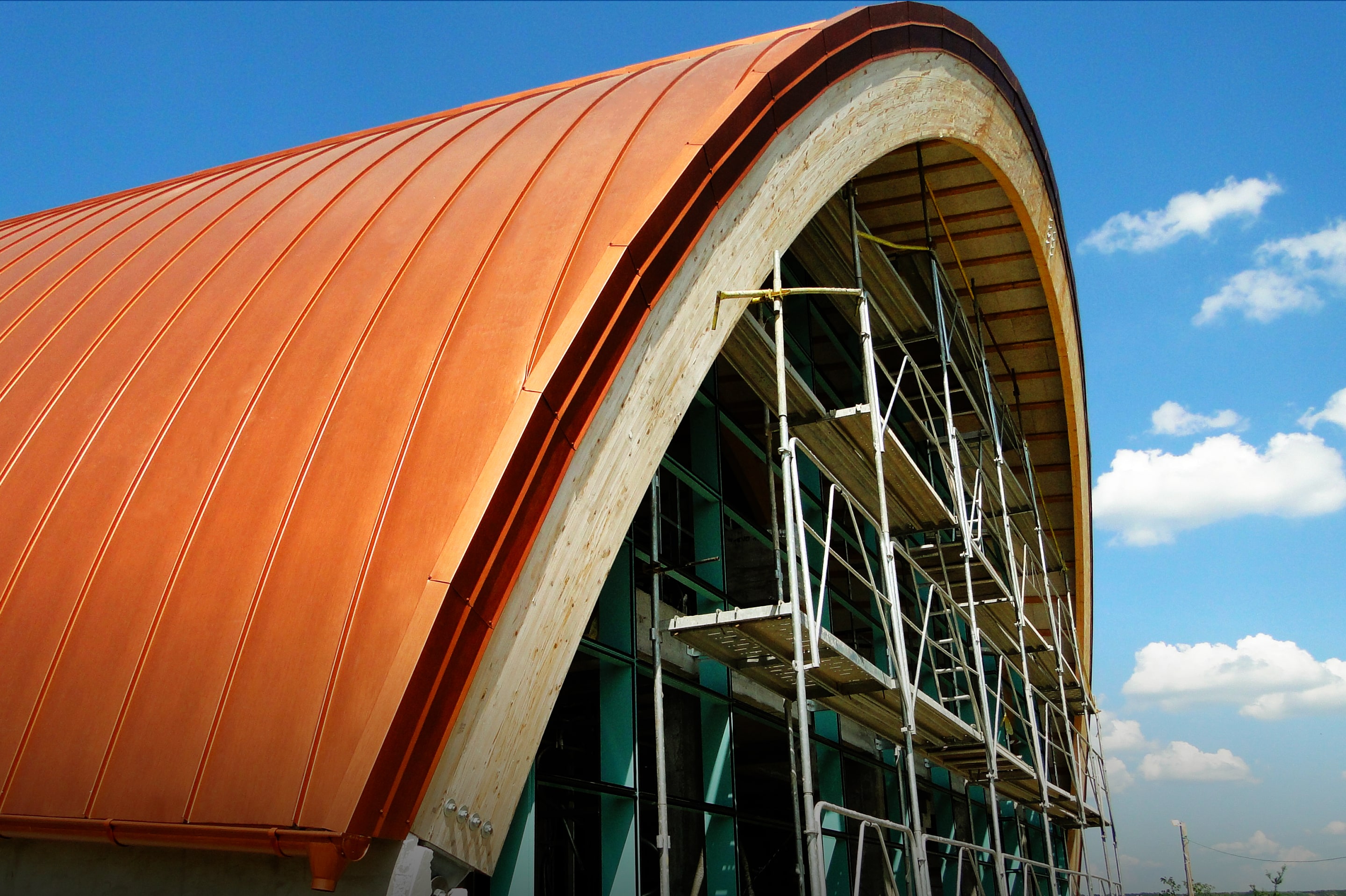

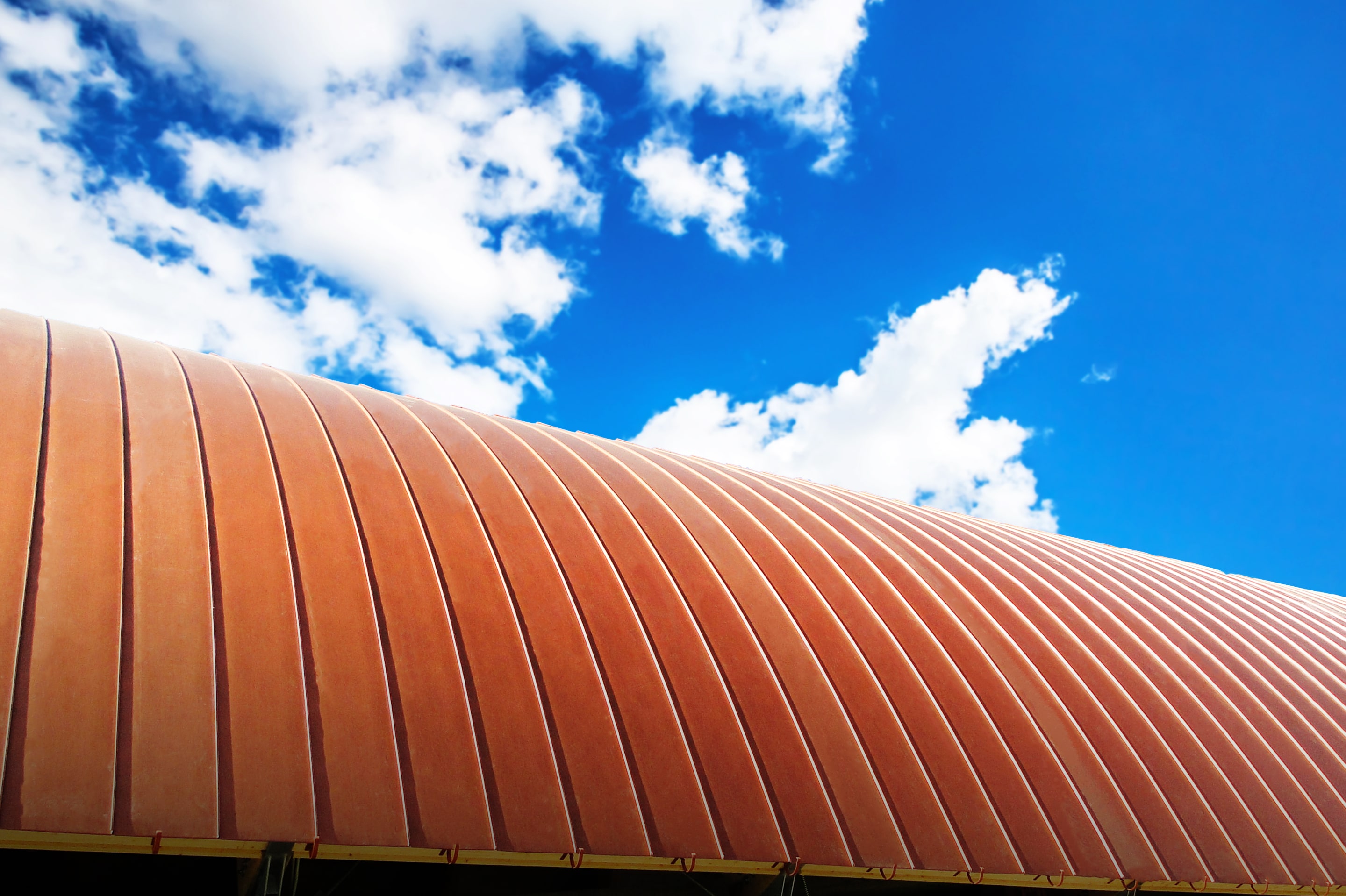

- The panels can be profiled in a conical shape and curved to the radius of the roof.
- Stable under temperature variations: the panels absorb and compensate for movement of the structure.
- Can be installed from a pitch of 3.5° up to the vertical.
- Greater watertightness thanks to the double seam.
Technical data
- Minimum roof pitch
- 3.5° (6%)
- Material and thickness
- Steel 0.50 · 0.55 · 0.60 mm, aluminium 0.70 mm
- Weight
- 1.9–4.4 kg/m²
- Zinc coating
- 120–275 g/m²
- Finishes
- PrinTech, BigStone, Matt, SunClear, RainDrop, MagneZinc
- Colours
- Spanish GRANADA, Spanish ANDALUSIA, STONEGRAY, METALGRAY, RAL 7024 (graphite grey), RAL 8017 (chocolate brown), RAL 8019 (grey brown), RAL 9005 (jet black), RAL 8004 (copper brown), NATUR, RAL 3005 (wine red), RAL 3009 (oxide red), RAL 3011 (brown red), RAL 7016 (anthracite grey), RAL 9010 (pure white), Weathered, Korten, HairLine Copper
- Warranty
- up to 40 years
Standing Seam Metal: questions and answers
What is standing seam metal roofing?
Standing seam roofing is a covering made of long sheet-metal panels, joined to one another by a double seam and fixed to the roof with concealed clips, without drilling the sheet. It is used on roofs and façades, including curved or conical shapes.
What size are BELPROFILE standing seam panels?
The panels are made to order, in lengths from 1 to 12 m and widths from 260 to 730 mm.
What is the minimum roof pitch for standing seam roofing?

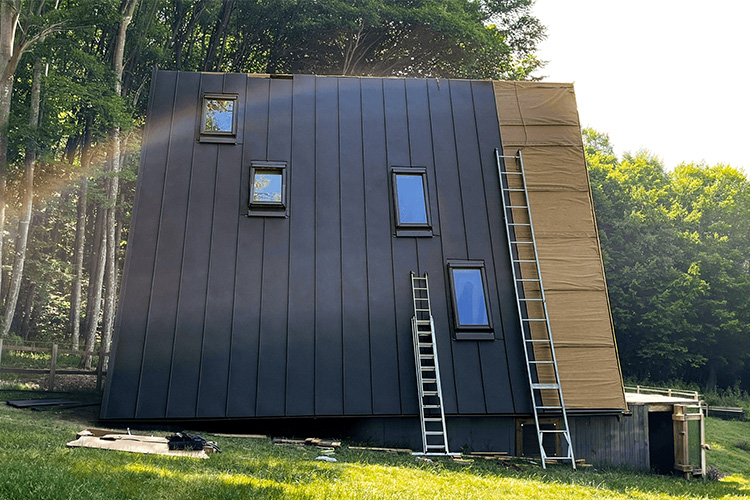

BELPROFILE standing seam roofing is installed from a pitch of 3.5°, that is 6%, up to vertical, on a façade.
What is standing seam roofing made of and how thick is it?
Steel of 0.50, 0.55 or 0.60 mm, or aluminium of 0.70 mm. It weighs between 1.9 and 4.4 kg/m², depending on the material and the thickness.
How is standing seam roofing installed?
The panels are fixed to the substrate with concealed clips and closed to one another by seaming, by machine or by hand, depending on the project. The sheet is not drilled. The BELPROFILE team offers technical advice from design to installation.
What warranty does BELPROFILE standing seam roofing have?
Up to 40 years, depending on the finish: 40 years for PrinTech, BigStone and for aluminium sheet, and 30 years for Matt, RainDrop and MagneZinc.
Standing seam or click roofing sheets?
Standing seam covers pitches from 3.5°, panels of up to 12 m and curved or conical shapes. Click roofing sheets have the same look, are simpler to install and suit roofs with a pitch of at least 12° and panels of up to 6 m.
How much does standing seam roofing cost?
The price per square metre depends on the material, the finish and the size and shape of the roof. Ask for a quote with the dimensions or the plan of your roof and you receive the price for your project.
