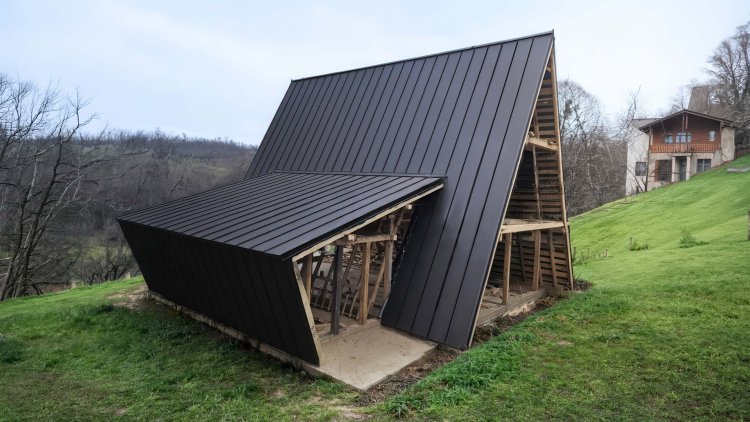

BELPROFILE Click Flat
The flat, minimalist profile for modern urban architecture: a smooth surface with no visible stiffening ribs.
Click Roofing Sheet Manufacturer
BELPROFILE Click roofing sheet brings the refined look of standing seam roofing in a more accessible, easier-to-install format, in three profiles: Flat, Stripes and Waves.
- models
- 3
- finishes
- 4
- colours
- 11
- maximum warranty
- 40 years
Choose the right model for your project

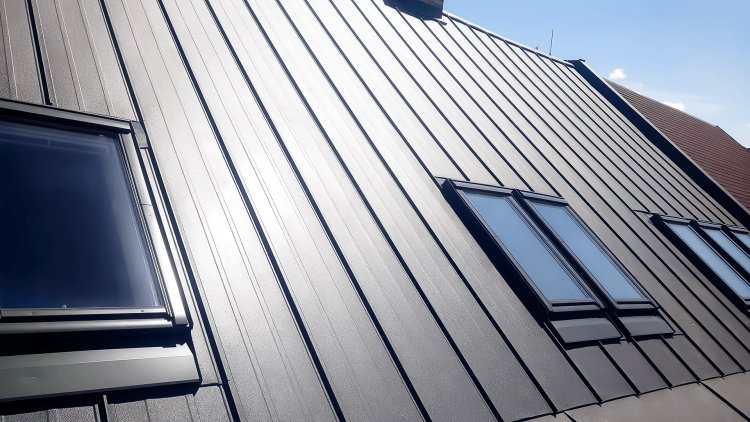

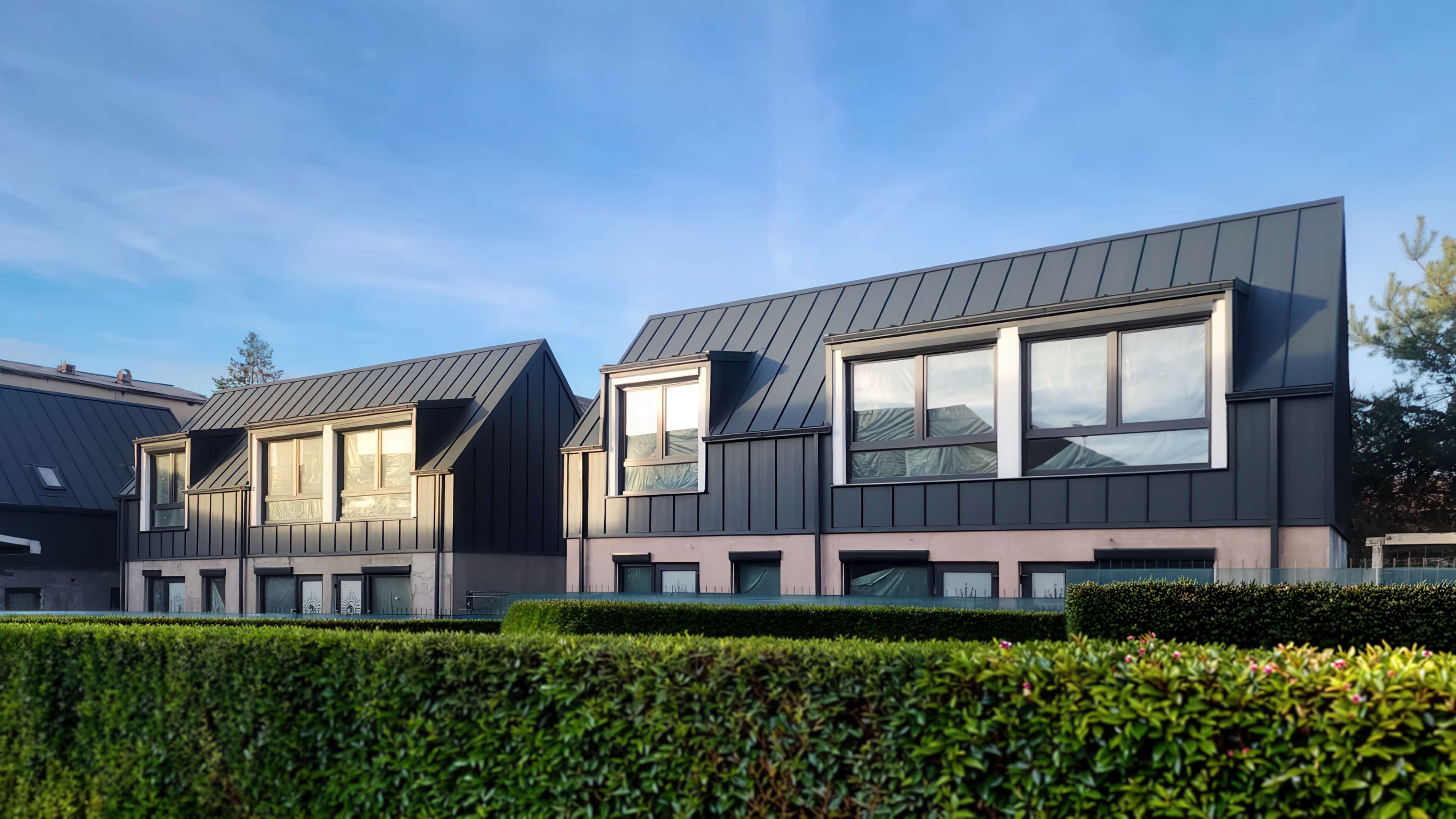

BELPROFILE Click Stripes
The look of standing seam roofing, with two longitudinal ribs for greater structural rigidity.
BELPROFILE Click Waves
The highest structural strength in the Click range, thanks to micro-sinusoidal stiffening; for strong winds.
About
Click Lock Metal
BELPROFILE Click roofing sheetis a click-joint roofing sheet systemthat brings the refined appearance of standing seam roofing - historically a roofing solution reserved for prestigious buildings - into a more accessible format that is easier to install. Available in three profiles: Flat, Stripes and Waves,each optimised for a different level of structural rigidity, from the minimalist look of the Flat profile to the enhanced strong-wind performance of the Waves profile.
The click-joint system enables fast and secure installation,with fully concealed screws and factory pre-cut seams, reducing on-site installation time. The panels are manufactured from pre-painted galvanised steel sheet with multilayer anti-corrosion protectionand PrinTech®, BigStone®, Matt or SunClearfinishes.
Suitable both for modern residential developmentsand for commercial or institutional buildingswith contemporary architectural lines, BELPROFILE click roofing sheets are installed on a ventilated structure, similarly to metal roof tiles, and benefit from a dedicated range of roofing accessories.
At a glance
- Click joint with fully concealed screws
- Factory pre-cut seams: fast and secure installation
- Three profiles: Flat, Stripes and Waves
- Pre-painted galvanised steel with multilayer anti-corrosion protection
- PrinTech®, BigStone®, Matt or SunClear finishes
- Installed on a ventilated structure, like metal roof tiles
- Dedicated range of roofing accessories
Frequently asked questions
Click Lock Metal: questions and answers
What is a click roofing sheet?
A click roofing sheet, also known as snap-lock standing seam, is a roofing sheet system with a click joint: the panels lock into one another and the screws stay concealed. It has the look of standing seam roofing in a format that is simpler to install. BELPROFILE makes it in three profiles: Flat, Stripes and Waves.
What size are BELPROFILE click roofing sheets?
The effective width is 500 mm and the total width 540 mm. The length is made to order, up to 6000 mm: from 1500 mm for the Flat profile and from 1000 mm for Stripes and Waves. The profile depth is 25 mm.
What is the minimum roof pitch for click roofing sheets?
BELPROFILE click roofing sheets are installed on roofs with a pitch of at least 12°, that is 21%.
How thick is a click roofing sheet and how much does it weigh?
The sheet is 0.50 mm pre-painted galvanised steel and weighs 4 kg/m².
Click roofing sheets or standing seam?
Click roofing sheets are simpler to install and suit roofs with a pitch of at least 12° and panels of up to 6 m. Standing seam covers pitches from 3.5°, panels of up to 12 m and curved or conical shapes, fixed with concealed clips.
Which click profile suits my roof?
Flat has a smooth surface and is recommended where wind exposure is low, as in urban areas. Stripes has two longitudinal stiffeners, for moderate exposure. Waves has micro-sinusoidal stiffening, for strong wind and large roofs.
What warranty do BELPROFILE click roofing sheets have?
The warranty depends on the finish: 40 years for PrinTech and BigStone, 30 years for Matt and 20 years for SunClear.
Can click roofing sheets be used on a façade?
Yes. All three profiles are also suitable for cladding.
How much do click roofing sheets cost?
The price per square metre depends on the profile, the finish and the size and shape of the roof. Ask for a quote with the dimensions or the plan of your roof and you receive the price for your project.
