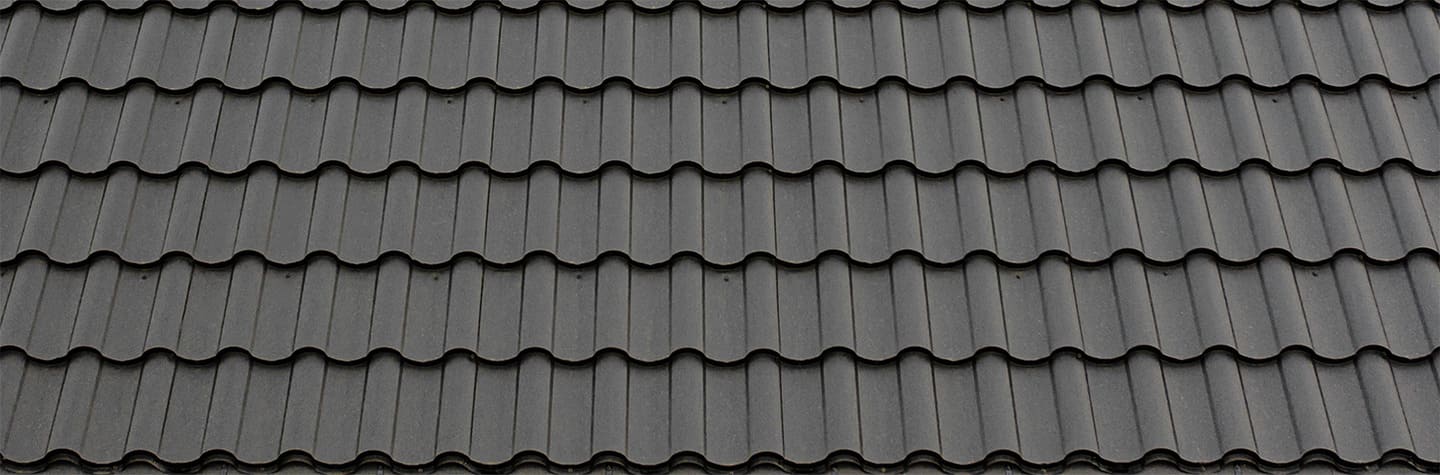

Metal Roof Tile BELPROFILE Monaco
BELPROFILE Monaco metal roof tile is an elegant roofing sheet profile inspired by the elegance of Mediterranean coastal architecture and the influences of the Iberian style - natural forms and harmonious curves characteristic of the villas and residences along the southern coast of Europe. The refined profile design creates a distinctive appearance, suited to residential projects where the roof becomes an important architectural element.
The best-performing coating system for sheet metal products, applied in 10 layers and offering the longest lifespan.
Special paint applied in 7 layers, each with a role in protecting the sheet over time; its sand-grain texture gives superior hardness and resistance and ensures greater thermal comfort in summer.
Matt polyester paint that gives the colour greater stability over time.
Glossy polyester paint, the traditional way of protecting metal products.
About Monaco
The Monaco profile is symmetrical, which allows the panels to overlap in either direction and significantly simplifies installation of the tile-effect metal roof - on-site flexibility and reduced installation time, especially useful for complex roofs.
The generous side overlap of the profile contributes to effective sealing of the joints and reduces the risk of water ingress, ensuring a secure joint and long-term protection of the roof.
Monaco metal roof tile is available in modular, bi-modular or long-panel formats, allowing easy adaptation to different roof configurations. Staggered-row installation, similar to brickwork, eliminates four-corner overlaps and allows offcuts to be reused, reducing material waste by up to 5% of the total roof area, according to panel-layout simulations - with even greater savings on roofs with many slopes.
Manufactured from pre-painted sheet metal with a multilayer coating system and zinc protection, BELPROFILE Monaco metal roof tile is designed to withstand corrosion and weathering. Compatibility with all roofing accessories makes it possible to create a complete, safe roof with an exceptionally elegant appearance.
- Symmetrical profile, can be installed in either direction.
- High strength thanks to the deep profiling and the height of the step.
- Provides considerable material savings on complex roofs.
- Available in modular, bi-modular or long-panel versions.
- Completes any project characterised by uncompromising design.
Technical data
- Style
- Iberian, sweeping curves
- Effective width
- 1060 mm
- Total width
- 1181 mm
- Profile depth
- 34 mm
- Step height
- 25 mm
- Total profile height
- 59 mm
- Batten spacing
- 350 mm
- Minimum roof pitch
- 14° (25%)
- Sheet thickness
- 0.50 mm
- Weight
- 4 kg/m²
- Installation and formats
- Symmetrical profile · Can be laid in both directions · Staggered laying · Modular, bi-modular or long panels
- Zinc coating
- 225–275 g/m²
- Finishes
- PrinTech, BigStone, Matt, SunClear
- Colours
- Spanish GRANADA, Spanish ANDALUSIA, STONEGRAY, METALGRAY, RAL 7024 (graphite grey), RAL 8017 (chocolate brown), RAL 8019 (grey brown), RAL 9005 (jet black), RAL 8004 (copper brown), RAL 3009 (oxide red), RAL 7016 (anthracite grey)
- Warranty
- up to 40 years
Roofs built with Monaco
