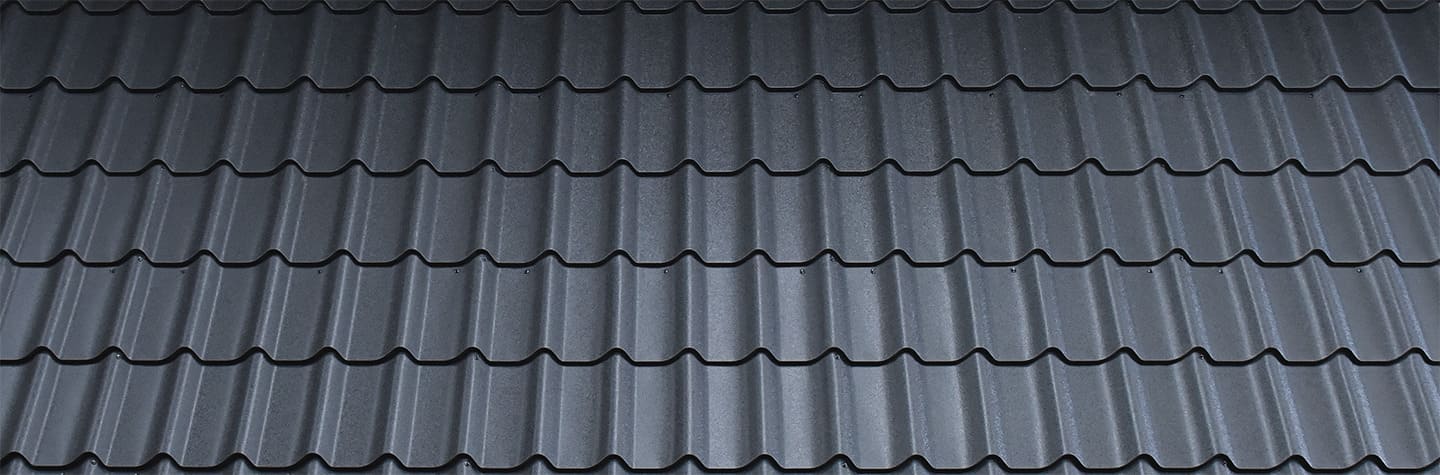

Metal Roof Tile BELPROFILE Royal
Unique in shape and technological advantages, Royal roof tile is the right choice for those who want a roof built to last for generations. The high 25 mm step helps stiffen the roof covering against mechanical deformation and gives the roof a broader, more robust and more premium appearance.
The best-performing coating system for sheet metal products, applied in 10 layers and offering the longest lifespan.
Special paint applied in 7 layers, each with a role in protecting the sheet over time; its sand-grain texture gives superior hardness and resistance and ensures greater thermal comfort in summer.
Matt polyester paint that gives the colour greater stability over time.
Glossy polyester paint, the traditional way of protecting metal products.
About Royal
The 30.5 mm profile depth ensures excellent compressive strength and reduces the risk of mechanical deformation of the roofing sheet. The joining system enables a precise 4-corner overlap, resulting in a compact, attractive and perfectly watertight roof.
For additional protection, the Royal profile incorporates a drainage edge that removes water from the longitudinal joints, while the three-dimensional contour cut ensures secure sealing between sheets. The generous top overlap protects the roof covering against capillary action.
BELPROFILE Royal metal roof tile is manufactured from pre-painted sheet metal with a multilayer coating system and zinc protection, and is available in glossy polyester, matt polyester, BigStone® (3D matt texture, 40 μm thick) and PrinTech® (HDP offset print, 40 μm thick) finishes. The easy-to-maintain profile, the distinctive finish shades and the complete range of accessories make Royal roof tile the solution for an exceptional residential roof.
- State-of-the-art Finnish technology.
- The technological advantages make the installers' work easier, resulting in a compact, perfectly watertight roof.
- The height of the waves and the width of the tiles ensure a modern look.
- An easy-to-maintain product.
- Suitable for both new builds and renovations.
Technical data
- Style
- Bold, robust, premium
- Effective width
- 1080 mm
- Total width
- 1170 mm
- Profile depth
- 30.5 mm
- Step height
- 25 mm
- Total profile height
- 55.5 mm
- Batten spacing
- 350 mm
- Minimum roof pitch
- 14° (25%)
- Sheet thickness
- 0.50 mm
- Weight
- 4 kg/m²
- Installation and formats
- Concealed four-corner joint
- Zinc coating
- 225–275 g/m²
- Finishes
- PrinTech, BigStone, Matt, SunClear
- Colours
- Spanish GRANADA, Spanish ANDALUSIA, STONEGRAY, METALGRAY, RAL 7024 (graphite grey), RAL 8017 (chocolate brown), RAL 8019 (grey brown), RAL 9005 (jet black), RAL 8004 (copper brown), RAL 3009 (oxide red), RAL 7016 (anthracite grey)
- Warranty
- up to 40 years
