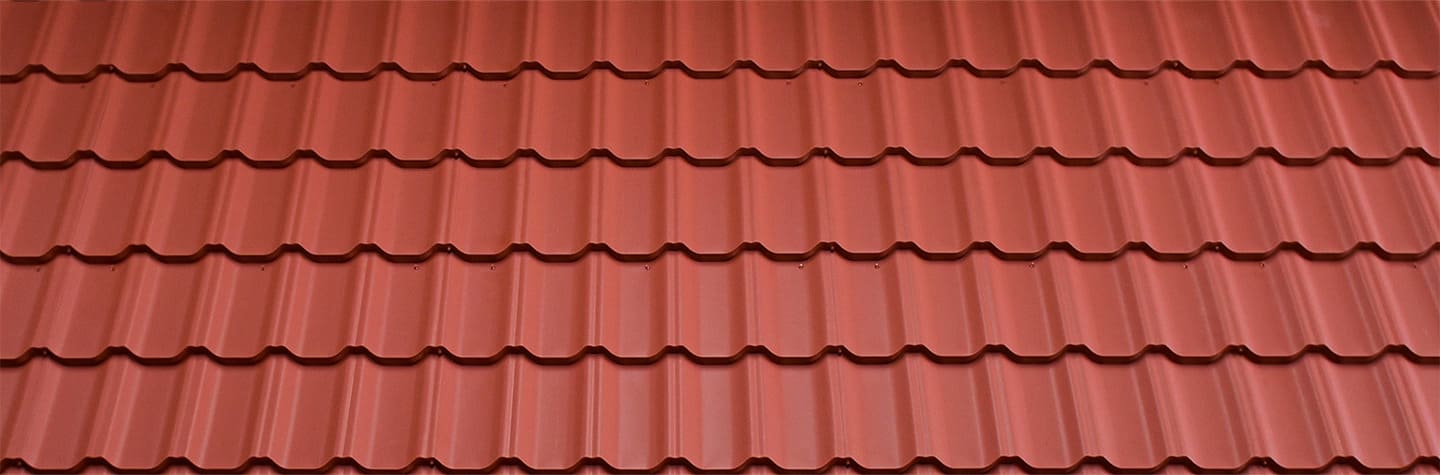

Metal Roof Tile BELPROFILE Sierra
BELPROFILE Sierra metal roof tile is a modern tile-effect roofing sheet profile inspired by the elegance of the Gothic style, characterised by tall lines and an expressive architectural design. The profile shape creates a distinctive look and gives personality to any roof, while retaining the benefits of durable metal roofing that is easy to install.
The best-performing coating system for sheet metal products, applied in 10 layers and offering the longest lifespan.
Special paint applied in 7 layers, each with a role in protecting the sheet over time; its sand-grain texture gives superior hardness and resistance and ensures greater thermal comfort in summer.
Matt polyester paint that gives the colour greater stability over time.
Glossy polyester paint, the traditional way of protecting metal products.
About Sierra
The Sierra profile is symmetrical, meaning the side edges are identical and allow installation in either direction - a feature that simplifies installation, reduces the risk of installation errors and allows adaptation to any residential roof configuration.
The design integrates drainage channels into the tile structure, helping to drain water efficiently and protect against water infiltration. Sierra metal roof tile is available in modular, bi-modular or long-panel formats; in the modular versions, the panels can be installed in staggered rows, similar to brickwork, which eliminates four-corner overlaps and distributes the joints more evenly.
Modular formats make it easier to calculate material requirements and simplify transport, storage and on-site handling; thanks to the symmetrical design, offcuts at the end of rows can be reused on the next row, reducing material waste by up to 5% of the roof area, according to panel-layout simulations - with even greater savings on roofs with many slopes. A genuine economic advantage for large-scale projects.
Manufactured from pre-painted sheet metal with a multilayer coating system and zinc protection, BELPROFILE Sierra metal roof tile is compatible with all roofing accessories, contributing to a complete metal roofing system with a strong architectural identity.
- Symmetrical profile, can be installed in either direction.
- Provides flexibility depending on the roof configuration.
- Distinctive look, suited to any project that aims to stand out.
- Available in modular, bi-modular or long-panel versions.
- Large effective width that ensures very good coverage.
Technical data
- Style
- Gothic, vertical lines
- Effective width
- 1150 / 1060 mm
- Total width
- 1198 / 1181 mm
- Profile depth
- 24 mm
- Step height
- 25 mm
- Total profile height
- 49 mm
- Batten spacing
- 350 mm
- Minimum roof pitch
- 14° (25%)
- Sheet thickness
- 0.50 mm
- Weight
- 4 kg/m²
- Installation and formats
- Symmetrical profile · Can be laid in both directions · Staggered laying · Modular, bi-modular or long panels
- Zinc coating
- 225–275 g/m²
- Finishes
- PrinTech, BigStone, Matt, SunClear
- Colours
- Spanish GRANADA, Spanish ANDALUSIA, STONEGRAY, METALGRAY, RAL 7024 (graphite grey), RAL 8017 (chocolate brown), RAL 8019 (grey brown), RAL 9005 (jet black), RAL 8004 (copper brown), RAL 3009 (oxide red), RAL 7016 (anthracite grey)
- Warranty
- up to 40 years
