Compare the click-lock roofing models

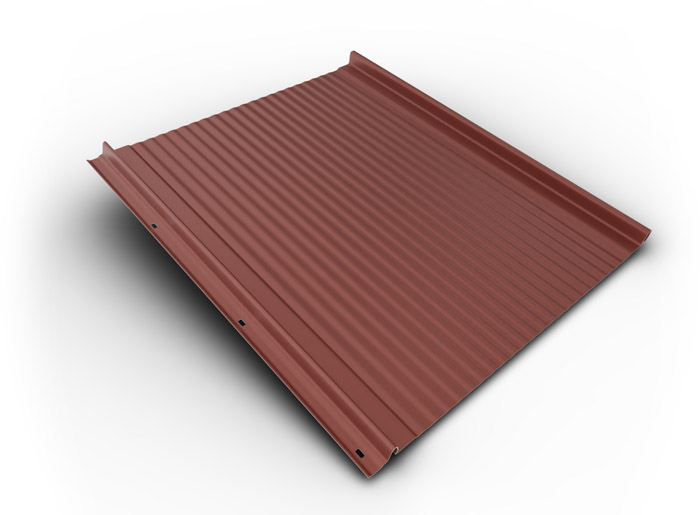

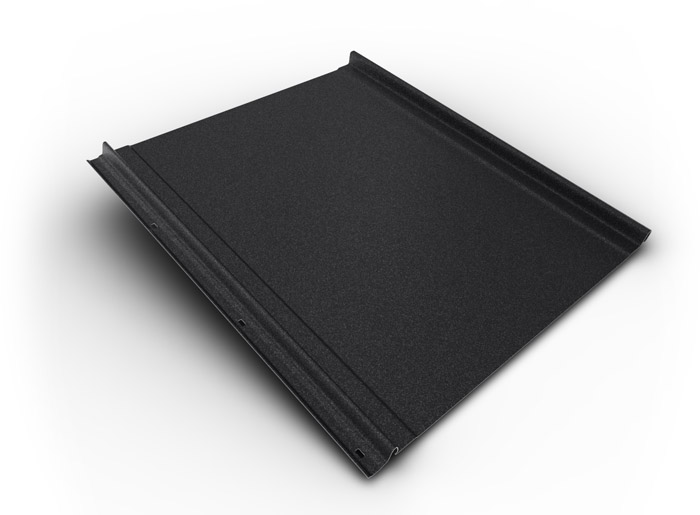

3 models	BELPROFILE Click Flat See the model	BELPROFILE Click Stripes See the model	BELPROFILE Click Waves See the model
Look
Panel surface	Smooth, no visible stiffeners	Two longitudinal stiffeners	Micro-sinusoidal stiffening
Dimensions (from the technical sheets)
Effective width Same	500 mm	500 mm	500 mm
Total width Same	540 mm	540 mm	540 mm
Profile depth Same	25 mm	25 mm	25 mm
Panel length	1500–6000 mm	1000–6000 mm	1000–6000 mm
Batten spacing Same	250–300 mm	250–300 mm	250–300 mm
Minimum roof pitch Same	12°	12°	12°
Sheet thickness Same	0.50 mm	0.50 mm	0.50 mm
Weight Same	4 kg/m²	4 kg/m²	4 kg/m²
Installation and formats
Recommended wind exposure	Low (urban areas)	Moderate	Strong; large roofs
Concealed fixing (click joint) Same
Lower edge prepared in the factory Same
Also suitable for cladding Same
Finishes, colours, warranty
PrinTech · 40 years Same
BigStone · 40 years Same
Matt · 30 years Same
SunClear · 20 years Same
Colours Same	11	11	11
Maximum warranty Same	40 years	40 years	40 years
Documents
Technical sheet	PDF	PDF	PDF

✓ = feature listed in the model's technical sheet; — = not applicable or not listed. The warranty depends on the finish.
