Compare the metal roof tile models

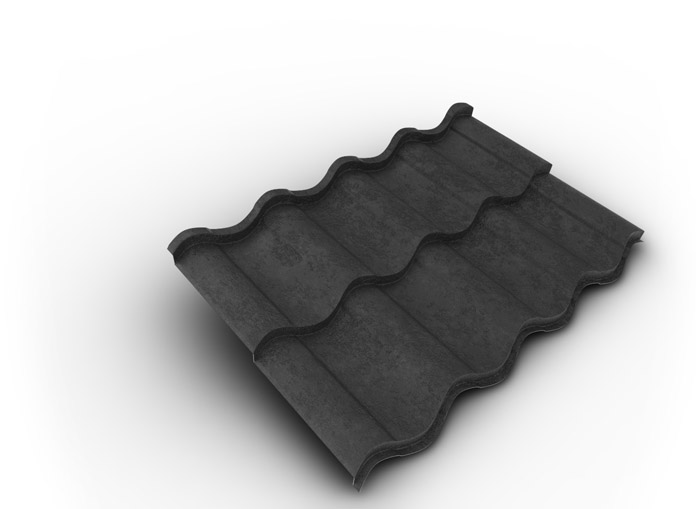

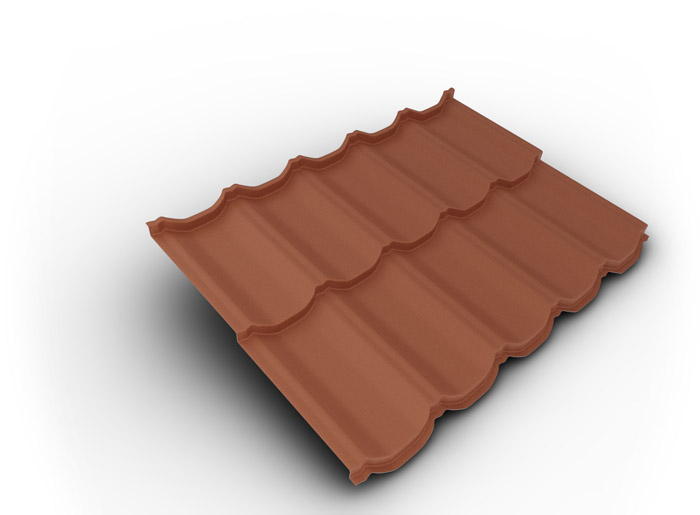

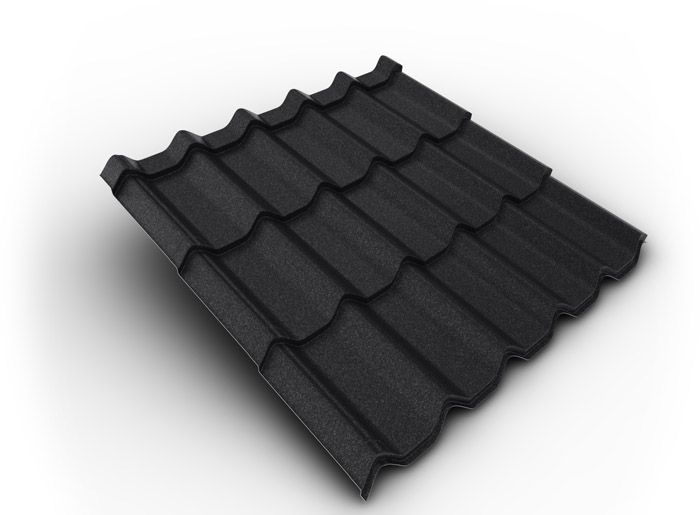

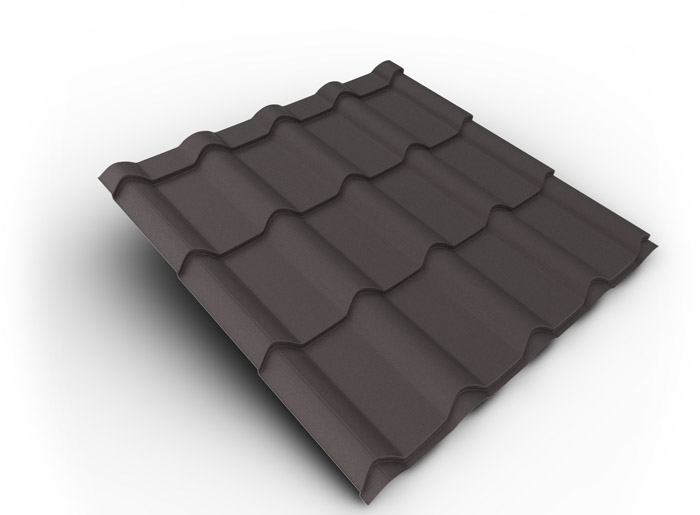

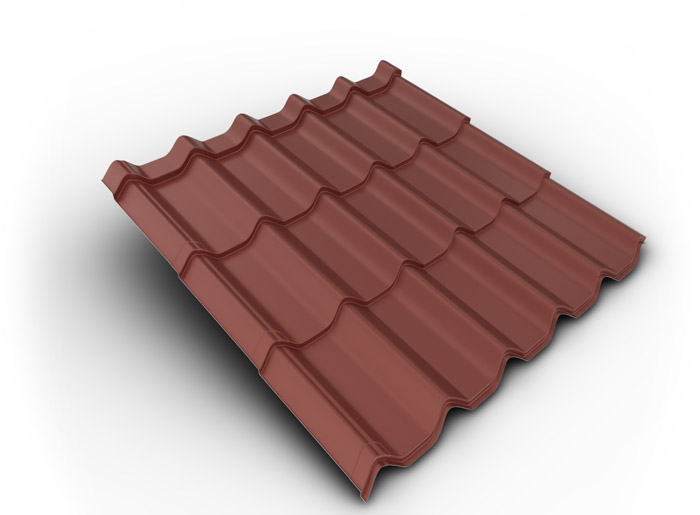

5 models	BELPROFILE Nordic See the model	BELPROFILE Riviera See the model	BELPROFILE Royal See the model	BELPROFILE Sierra See the model	BELPROFILE Monaco See the model
Look
Style	Modern, simple lines	Mediterranean, rounded profile	Bold, robust, premium	Gothic, vertical lines	Iberian, sweeping curves
Dimensions (from the technical sheets)
Effective width	1080 mm	1085 mm	1080 mm	1150 / 1060 mm	1060 mm
Total width	1170 mm	1185 mm	1170 mm	1198 / 1181 mm	1181 mm
Profile depth	30.5 mm	31.5 mm	30.5 mm	24 mm	34 mm
Step height	20 mm	20 mm	25 mm	25 mm	25 mm
Total profile height	50.5 mm	51.5 mm	55.5 mm	49 mm	59 mm
Batten spacing Same	350 mm	350 mm	350 mm	350 mm	350 mm
Minimum roof pitch Same	14°	14°	14°	14°	14°
Sheet thickness Same	0.50 mm	0.50 mm	0.50 mm	0.50 mm	0.50 mm
Weight Same	4 kg/m²	4 kg/m²	4 kg/m²	4 kg/m²	4 kg/m²
Installation and formats
Concealed four-corner joint		—		—	—
Symmetrical profile	—		—
Can be laid in both directions	—	—	—
Staggered laying	—	—	—
Modular, bi-modular or long panels	—	—	—
Finishes, colours, warranty
PrinTech · 40 years	—
BigStone · 40 years	—
Matt · 30 years Same
SunClear · 20 years Same
Colours	7	11	11	11	11
Maximum warranty	30 years	40 years	40 years	40 years	40 years
Documents
Technical sheet	PDF	PDF	PDF	PDF	PDF

✓ = feature listed in the model's technical sheet; — = not applicable or not listed. The warranty depends on the finish.
